Loading Printer Paper in a PAX Terminal with an Integrated Printer

If your PAX terminal is equipped with an integrated printer, a roll of printer paper is included with the device. Have the paper roll available.

The Load Paper screen appears on the device during terminal set up only if your terminal has an integrated printer. In order to print transaction receipts, the paper roll must be loaded into the terminal.

Follow these steps to load printer paper in the PAX Terminal:

Find and open the printer hatch on the top-rear of the terminal by pulling the printer cover switch toward the bottom of the device.

Review the diagram on the inside of the hatch that shows the correct way to insert the paper roll.

Insert the paper roll.

Pull out approximately 1 inch of the paper beyond the hatch. This step reduces the possibility of a paper jam when you print the first receipt using a new roll of paper.

Close the hatch.

Tap

Continue

. You are prompted to activate your terminal in the Acceptance Devices app. For more information, see Activating a Terminal in the Acceptance Devices App.

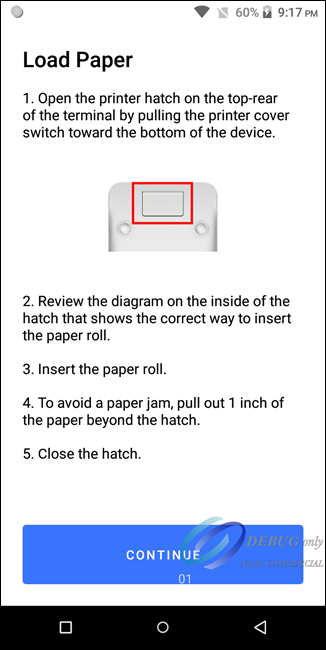

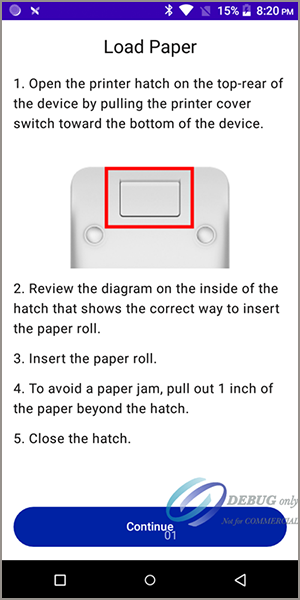

Load Paper Screen, Showing Instructions and Photo of PAX Terminal Rear
Side
